Drifting And Tunneling R28
Rock drill extension rod can divide into round extension rods and hexagonal extension rods, and is widely used in bench drilling, bolt hole drilling, production drilling, long hole drilling, small hole drilling and other fields.
Extension rod, with male threads at both ends, connects with a shank adapter through a coupling sleeve. Rock drill extension rod can divide into round extension rods and hexagonal extension rods, and is widely used in bench drilling, bolt hole drilling, production drilling, long hole drilling, small hole drilling and other fields.
kendol owns a large scale extension rod factory to produce and provide high quality rock drill extension rods, such as R22 drill extension rod, R25 extension rod, R28 extension rod, R32 extension rod, R38 extension drill rod, T38 threaded extension rod, T45 extension rod, T51 rod, SR25 extension rod…

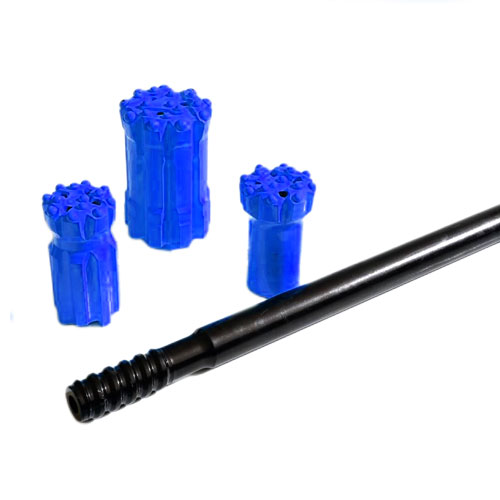

R28 (1 1/8″)
Button bit ( R28) | Dimensions (D) | Flushing hole (mm) | Buttons (mm) | Angle | Class | Part no. | |||
mm | inch | Front No size |
Gauge No size |
Front No size |
Gauge No size |
||||
38 41 43 45 |
1 1/2” 1 5/8” 1 11/16” 1 3/4” |
2×5 2×5 2×5 2×5 |
1×5 1×5 1×5 1×5 |
5×9 5×6 5×10 5×11 |
2×7 2×8 2×8 2×9 |
30° 30° 30° 30° |
H H H H |
3038R2807 3041R2807 3043R2807 3045R2807 |
|
41 | 1 5/8” | 2×5 | 2×5.5 | 6×9 | 2×8 | 30° | S | 3041R2808 | |
43 45 |
1 11/16” 1 3/4” |
—— 1×5 |
3×5 3×5 |
6×9 6×10 |
3×8 3×8 |
30° 30° |
M M |
3043R2809 3045R2809 |
Reaming Tools (R28) | Dimensions (D) | Flushing hole (mm) | Buttons (mm) | Angle | Part no. | |||
mm | inch | Front No size |
Gauge No size |
Front No size |
Gauge No size |
|||
Pilot bit 6°taper |
40 | 1 37/64” | 2×5.5 | 2×5 | 4×9 | 2×8 | 30° | 3040R2806K |
Reaming bit 6°taper |
76 | 3” | —— | —— | 8×11 | —— | 35° | 3076R2808K |
Dome bit |
76 | 3” | 2×7 | 2×9 | 14×11 | 1×11 | 35° | 3076R2815K |
Drill rod (R28) | Dimensions (L) | Dimensions (D) | Part no. | |||
mm | ft | inch | mm | in | ||
Hex rod 28 with threads R28/R32 |
2800 3100 3700 |
9 10 12 |
2 2 2 |
28 28 28 |
1 1/8 1 1/8 1 1/8 |
2128R32R2828 2128R32R2831 2128R32R2837 |
Hex rod 32 with threads R28/R32 |
4310 | 14 | 2 | 32 | 1 1/4 | 2132R32R2843 |
Coupling (R25) | Dimensions (D) | Length(L) mm |
Part no. | |
mm | inch | |||
R28-R28 |
37 | 1 29/64” | 160 | MX-R283716 |
Crossover coupling R28-R32 |
45 | 1 3/4” | 171 | MX-R28R324517 |
