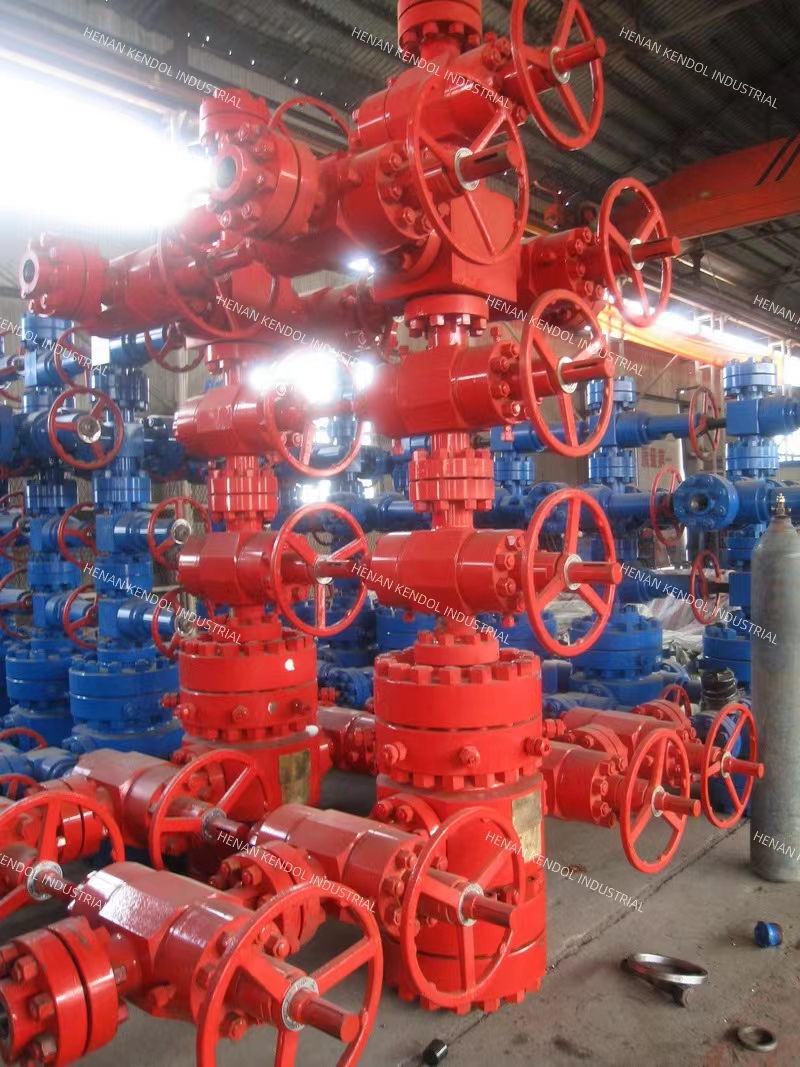

Oil (Gas) X-mas Tree and Tubing Head
Production wellhead device and tubing head strict accordance with the standard API Spec6A design and manufacture. Customers can choose our company products in accordance with the following table, company can according to the user’s requirements for special designs.
Main technical Parameters of KQ Series Wellhead Devic
| Specification Level | PSL1-4 |
|
Material Class |
AA 〜FF |
|
Performance Requirement Level |
PR1-2 |
|
Temperature Class |
P.U(-29C 〜121℃) |
|
Type |
KQ29/16“-21/16“ | KQ29/16“-21/16“ | KQ29/16“-21/16“ | KQ31/16“-21/16“ | KQ29/16“ | KQ31/16“-21/16“ | KQ29/16“ | KQ31/16“-21/16“ | |
|
Parameters |
-2OOOPSi | -3000PSi | -5000PSi | -5000PSi | -lOOOOPSi | -lOOOOPSi | -15OOOPSi | -15000PSi | |
| Working Pressure | 2000PSi | 3000PSi | 5000PSi | 5000PSi | lOOOOPSi | lOOOOPSi | 15000PSi | 15000PSi | |
| Temperature Class | P.U | P.U | P.U | P.U | P.U | P.U | P.U | P.U | |
| Product Speci fication Level | PSL1-4 | PSL1-4 | PSL1-4 | PSL1-4 | PSL1-4 | PSL1-4 | PSL1-4 | PSL1-4 | |
| Performance Re quirement Level | PR1-2 | PR1-2 | PR1-2 | PR1-2 | PR1-2 | PR1-2 | PR1-2 | PR1-2 | |
| X-mas Tree | Main Passage Diameters | 29/16“ | 29/16“ | 29/16“ | 31/16“ | 29/16“ | 31/8“ | 29/16“ | 31/8“ |
| Side Passage Diameters | 21/16“ | 21/16“ | 21/16“ | 29/16“ | 21/16“ | 29/16“ |
21/16″ |
29/16“ | |
| Tubing Head |
Up Flange |
71/16“ | 71/16“ |
71/16“ |
71/16“ | 71/16“ | 71/16“ | 71/16“ | 71/16“ |
| Down Flange | 71/16“or 11” | 71/16“or 11” | 71/16“or 11” | 11”or as requires | 11”or as requires | 11”or as requires | 11”or as requires | 11”or as requires | |
|
Side Passage Diameters |
21/16“ |
21/16“ |
21/16“ | 29/16“ |
21/16“ |
21/16“ | 21/16“ | 29/16“ | |
|
Min Vertical Diameter |
65/16“(160mm) | 65/|6“(l60mm) | 65/|6“(l60mm) | 65/|6“( 160mm) | 65/I6“(160mm) | 65/16“( 160mm) | 65/16“(160mm) | 65/16“(160mm) | |
| Tubing Hanger Thread | 31/2”EUE or as requires | 31/2”EUE or as requires | 31/2”EUE or as requires | 31/2”EUE or as requires | 31/2”EUE or as requires | 31/2”EUE or as requires | 31/2”EUE or as requires | 31/2”EUE or as requires | |
|
Tubing Hanger Type |
Cone or straight | Cone or straight | Cone or straight | Cone or straight | Cone or straight | Cone or straight | Cone or straight | Cone or straight | |
