Steel Skeleton Reinforced Polyethylene Composite Pipe

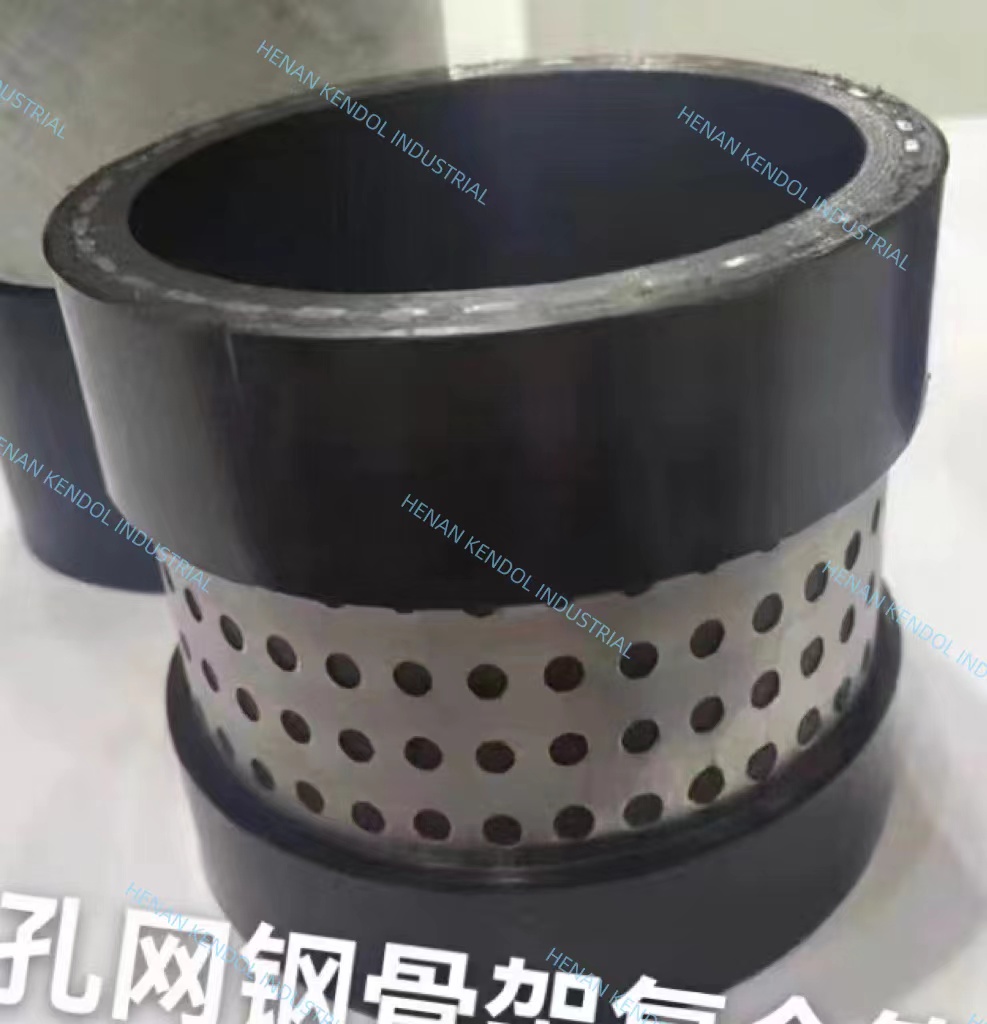

Composition structure:

Inner layer – sealing layer, thermoplastic polymer resin with special properties.

Middle – reinforcement layer, metal skeleton reinforcement.

The outer layer – the protective layer, is made of anti-aging and anti-UV polyethylene resin.

Features:

1. Not easy to scale
2. Smooth and low resistance
3. Insulation is not easy to form wax
4. Wear-resistant

5.Light weight

6.Double-sided anti-corrosion

7. Product structure and performance adjustment is convenient and flexible
8. Special electrofusion joints, various varieties, fast and reliable installation

Implementation standards

SY/T 6662.1-2021 “Non-metallic composite pipes for the oil and gas industry Part 1: Steel skeleton reinforced polyethylene composite pipes”

Nominal size

DN 50mm-630mm

Nominal pressure

PN ≤ 2.5MPa

Scope of application: used for oil, natural gas, industrial oil, gas, sewage transportation and mixed transportation. Also used for transporting drinking water, fire water and corrosive liquids. When transporting gas media, the temperature should not exceed 40°C. For other types of media, the temperature does not exceed 70°C.

Application:

1. Municipal engineering: urban water supply, heating network return water, coal gas, and natural gas transmission pipelines.
2. Chemical engineering: industrial pipes and discharge pipes for transporting corrosive gases, liquids, solid powders in acid, alkali, salt manufacturing, petrochemical, fertilizer, pharmaceutical, chemical, rubber and plastic industries.
3. Oil and gas fields: oily sewage, gas field sewage, oil and gas mixtures, secondary and tertiary oil gathering and transportation industrial pipes.
4. Thermal power engineering: industrial water, return water transportation, dust removal, waste residue and other transportation pipelines.
5. Metallurgical mining: corrosive medium transportation in non-ferrous metal smelting and industrial pipes for slurry and tailings.
6. Highway: buried drainage pipes, cable ducts.
7. Marine engineering: seawater transportation, submarine pipelines and optical (electrical) cable ducts, etc.
8. Shipbuilding: ship sewage pipes, drainage pipes, ballast water pipes, ventilation pipes.
